RabbitMQ 설치 & 기본 사용법 (윈도우)
mac 에 RabbitMQ Server 를 설치하려다가.. M1 칩셋에 문제가 있는건지 메모리 참조 문제가 발생
알아보니 Mac 과 호환 안되는 문제가 있는 것 같다.
Rosetta3.10 on macOS segmentation fault 11
따라서 윈도우 컴퓨터로 설치를 진행합니다... ㅋㅋㅋ

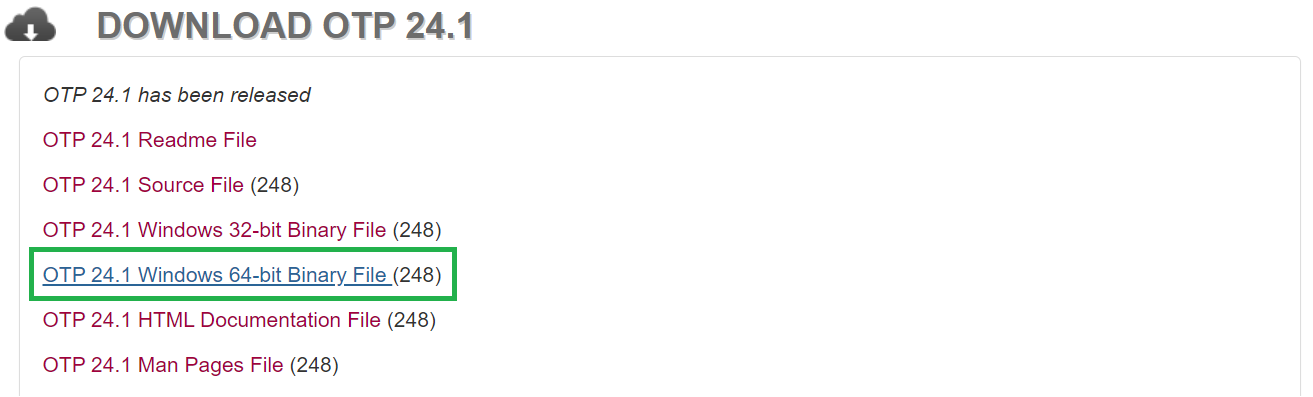

ErLang 설치
RabbitMQ 는 ErLang 을 필요로 한다.

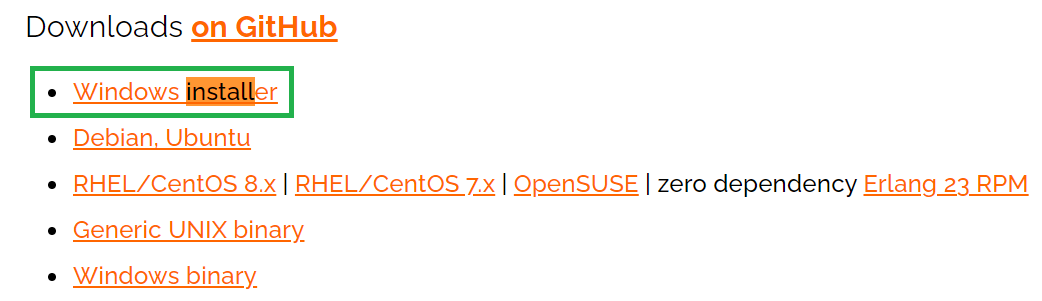

RabbitMQ 설치하기
Downloading and Installing RabbitMQ
RabbitMQ 실행하기
Downloading and Installing RabbitMQ
RabbitMQ 실행하기
Downloading and Installing RabbitMQ
RabbitMQ 실행하기

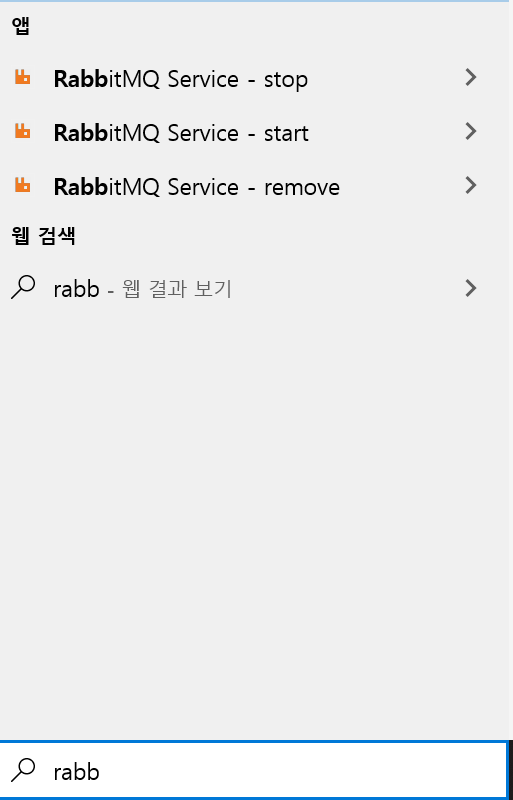

RabbitMQ Service Start 를 실행합니다.
RabbitMQ Process 확인하기
명령창에서 아래와 같은 명령어를 입력합니다. 이는 RabbitMQ 의 기본 Port 가 5672 인 점을 이용해서 찾습니다.
netstat -ano | findstr 5672
관리자 콘솔창 확인하기
기본 RabbitMQ 가 설치된 경로에서 아래 명령어를 입력한다. 해당 경로는 RabbitMQ log 폴더가 위치한 곳에서 sbin을 찾았다.
경로는 다음과 같았다.
cd C:\\Program Files\\RabbitMQ Server\\rabbitmq_server-3.9.7\\sbin
명령어

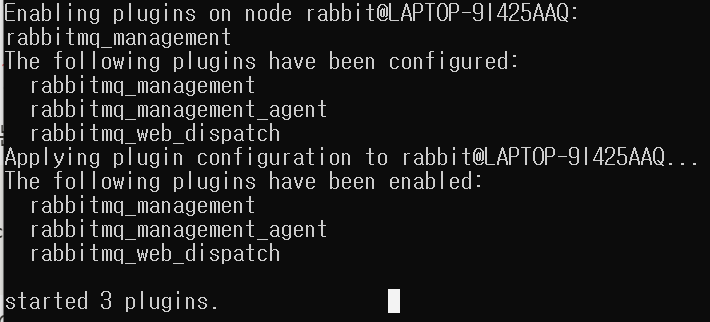

rabbitmq-plugins enable rabbitmq_management

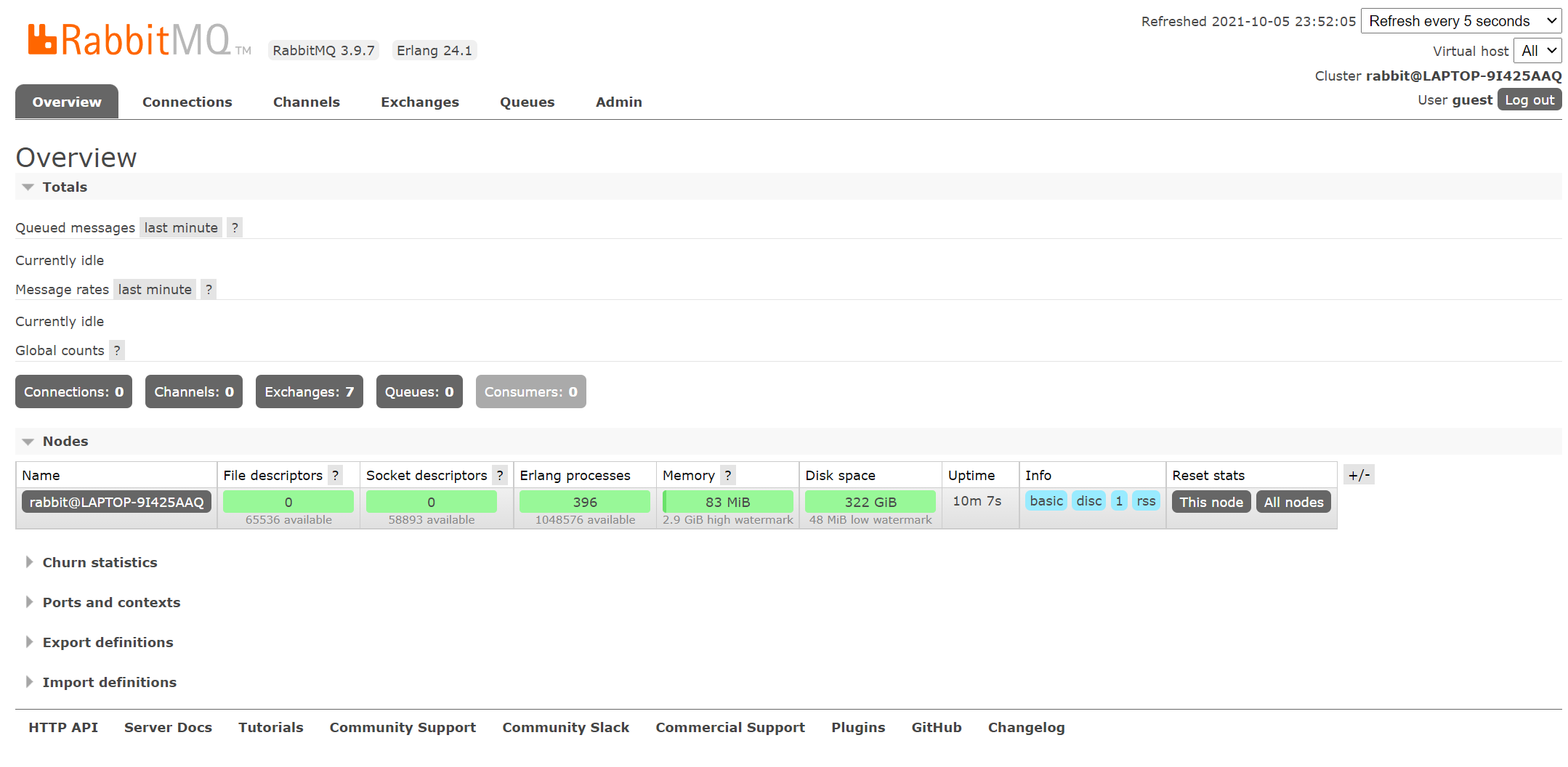

이제 아래 url로 브라우저를 띄우면 다음과 같은 화면을 만날 수 있다.
http://localhost:15672/
접속을 하면 위와 같은 로그인창이 나타나는데 guest / guest 로 접속할 수 있다
port 열기
윈도우 컴퓨터를 server 로 사용할 것이기 때문에 외부에서 접근하게 된다면 다음과 같이 포트를 열어준다.
제어판 - 시스템 및 보안 - Windows Defender 방화벽 - 고급 설정 - 새 규칙
- 규칙 종류(인바운드) : 포트
- 프로토콜 및 포트 : 5672
- 연결 허용
- 나머지 기본 설정
RabbitMQ 간단 시작하기
의존성
<dependency>
<groupId>org.springframework.amqp</groupId>
<artifactId>spring-rabbit-test</artifactId>
<scope>test</scope>
</dependency>
rabbitmq 의 클라이언트 관련 의존성이다.
Send (Producer)
public class Send {
private final static String QUEUE_NAME = "hello";
public static void main(String[] args) {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
factory.setPort(5672);
factory.setUsername("guest");
factory.setPassword("guest");
try (Connection connection = factory.newConnection(); Channel channel = connection.createChannel()) {
for (int i = 0; i <= 1000; i++) {
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
String message = "Hello World!" + (int) (Math.random() * 100);
channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
System.out.println(" [x] Set '" + message + "'");
Thread.sleep(10);
}
} catch (TimeoutException e) {
e.printStackTrace();
} catch (IOException e) {
e.printStackTrace();
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}

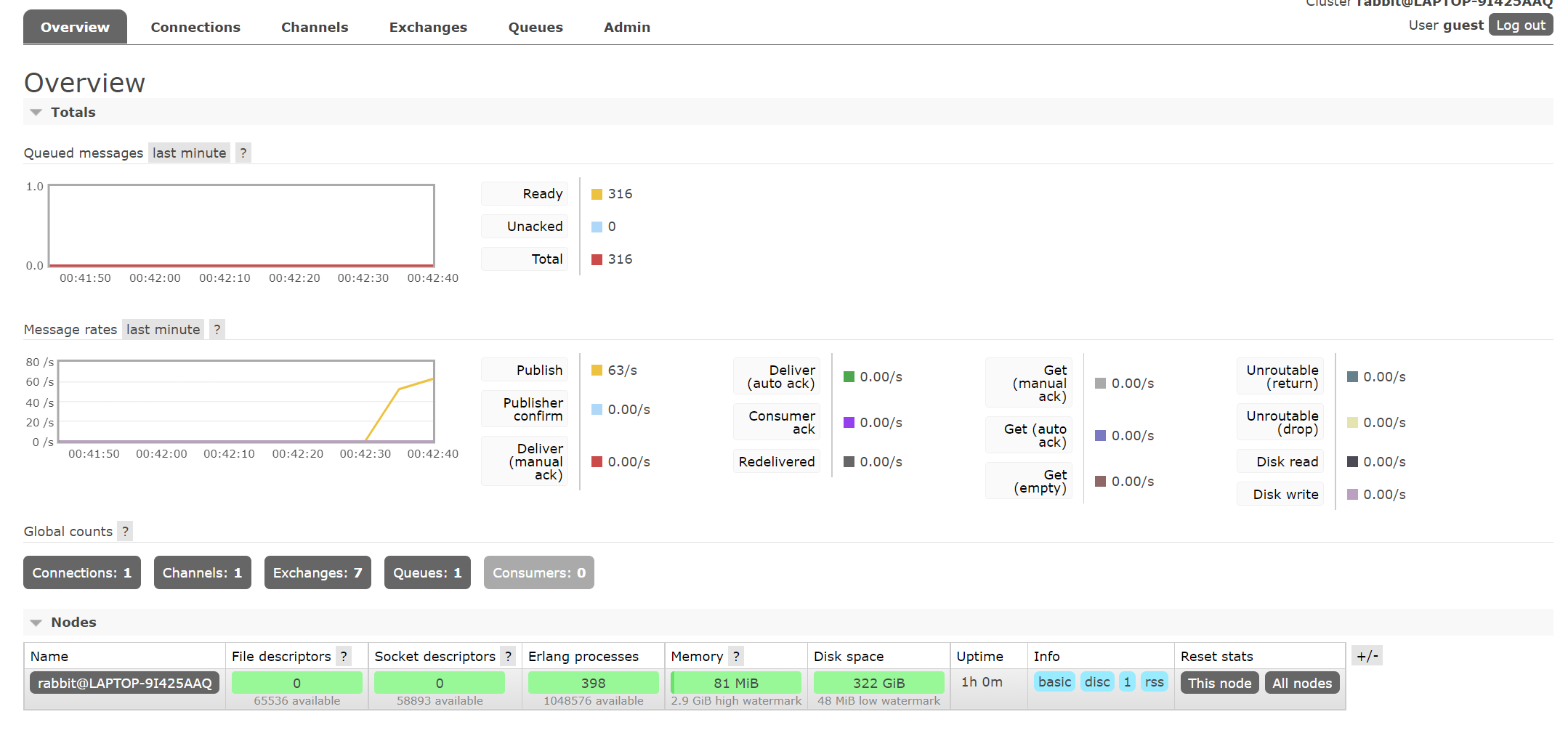

위 코드를 실행시키고 rabbitmq 관리자 콘솔을 보면 메세지가 쌓이는 것을 확인할 수 있다.

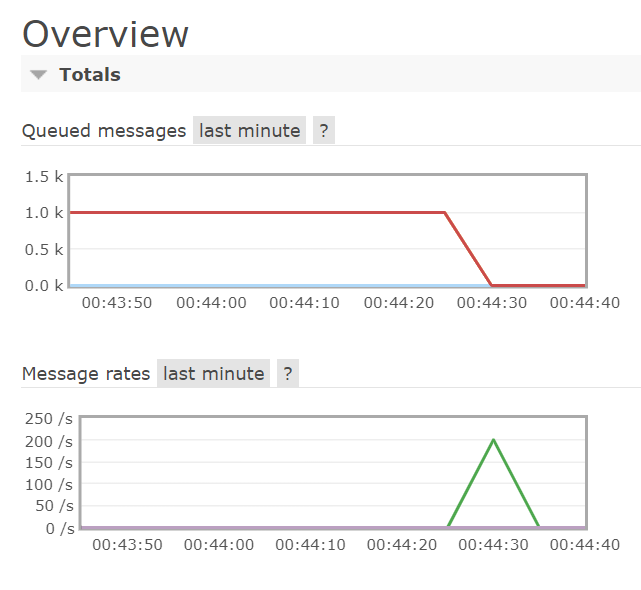

이렇게 쌓인 메세지를 Recv 를 실행시키면 모두 처리한다.
Recv (Consumer)
public class Recv {
private final static String QUEUE_NAME = "hello";
public static void main(String[] argv) throws Exception {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("localhost");
factory.setPort(5672);
factory.setUsername("guest");
factory.setPassword("guest");
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
System.out.println(" [*] Waiting for messages. To exit press CTRL+C");
DeliverCallback deliverCallback = (consumerTag, delivery) -> {
String message = new String(delivery.getBody(), "UTF-8");
System.out.println(" [x] Received '" + message + "'");
};
channel.basicConsume(QUEUE_NAME, true, deliverCallback, consumerTag -> { });
}
}
개념 정리
RabbitMQ 는 Message Broker 로 보통 요청과 처리 사이의 결합을 느슨하게 하게 위해 사용한다. 즉, 요청을 쌓아두고 나중에 처리하기 위해서 사용을 하는 느낌이라고 생각하면 된다.
기본적으로 요청을 생성하는 Producer 와 요청 메세지를 받는 서버인 Message Broker (RabbitMQ) 그리고 쌓인 요청을 처리할 Consumer 이 세가지로 이루어져 있다.
메세지는 기본적으로 큐에 쌓아두고, 해당 큐의 메세지를 처리할 수 있도록 등록된 Consumer 가 처리 가능한 상태가 되면 Message Broker 의 요청을 받아서 처리하는 것이 기본 형태이다.

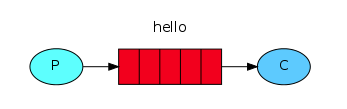

RabbitMQ 튜토리얼에서 설명하고 있는 그림은 다음과 같다.
